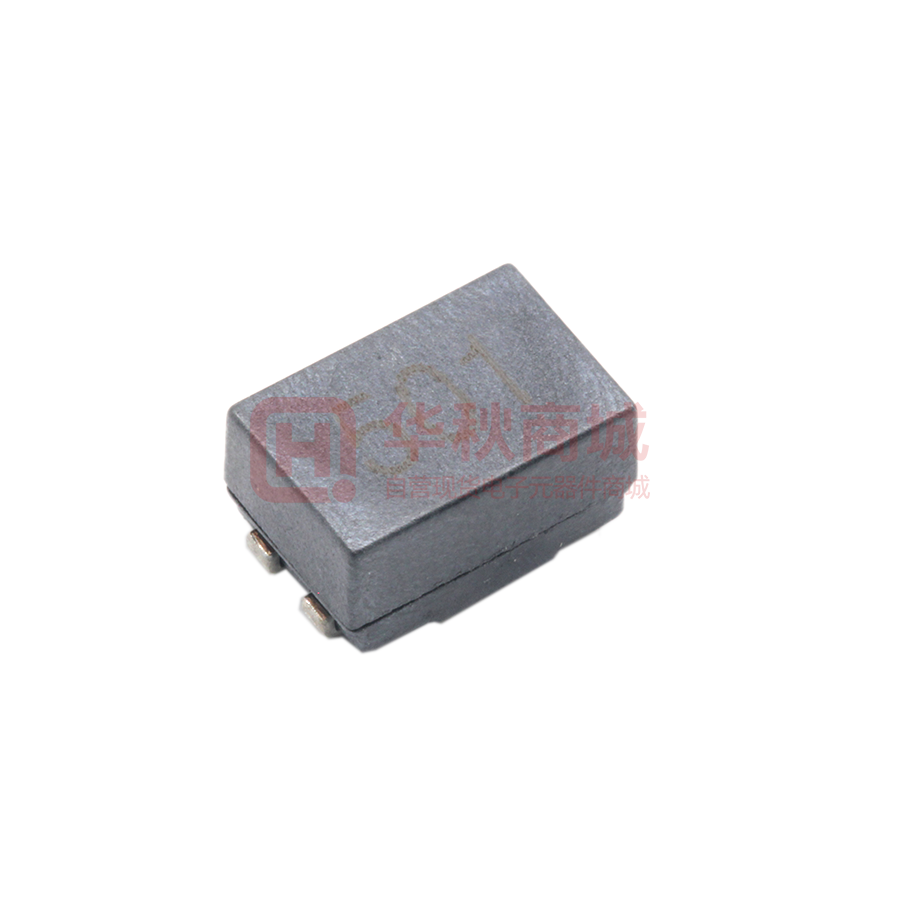

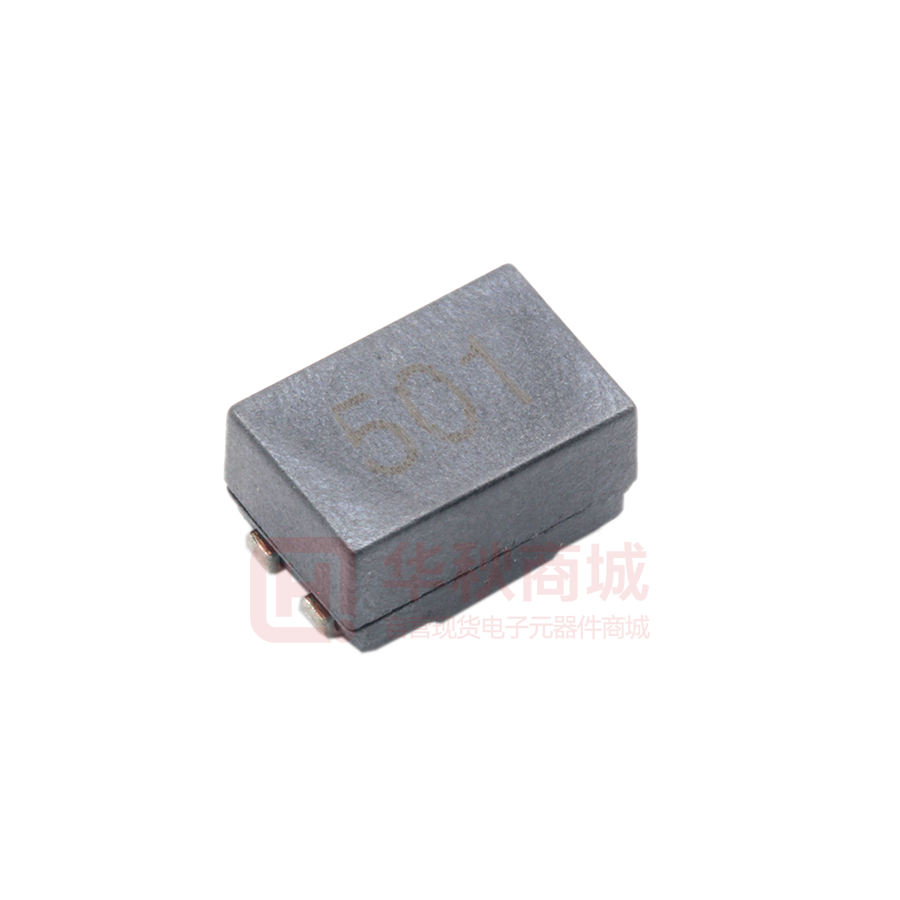

Images are for reference only
SMCM090605-501
- Mfr Part #SMCM090605-501
- ManufacturerSXN
- HQ Part #IN0036378
- PackageCHOKE_9.2X6MM_SM
- Lead Time Ship immediately
DescriptionCommon Mode Chokes CHOKE_9.2X6MM_SM 15µH ±50% 1A 150mΩ 3.3KΩ 9.20 x 6.00mm 5.00mm
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| DC Resistance (DCR) | 150mΩ | |
| Number Of Lines | 2 | |
| Operating Temperature | -40~+125℃ | |
| Rated Current | 1A | |
| Height | 5.00mm | |
| Size | 9.20 x 6.00mm | |
| Package / Case | CHOKE_9.2X6MM_SM | |
| Installation Type | SMT | |
| Accuracy | ±50% | |
| Sensibility | 15µH | |
| Partlife Cycle | Active | |
| Country of Origin | China | |
| Certification | RoHS,HF(halogen free) | |
| Original Manufacturer | ShenZhen ShunXiangNuo Electronics Co.,Ltd. | |
| Brand | SXN | |
| Series | SMCM090605 | |
| Common Impedance | 3.3KΩ |
