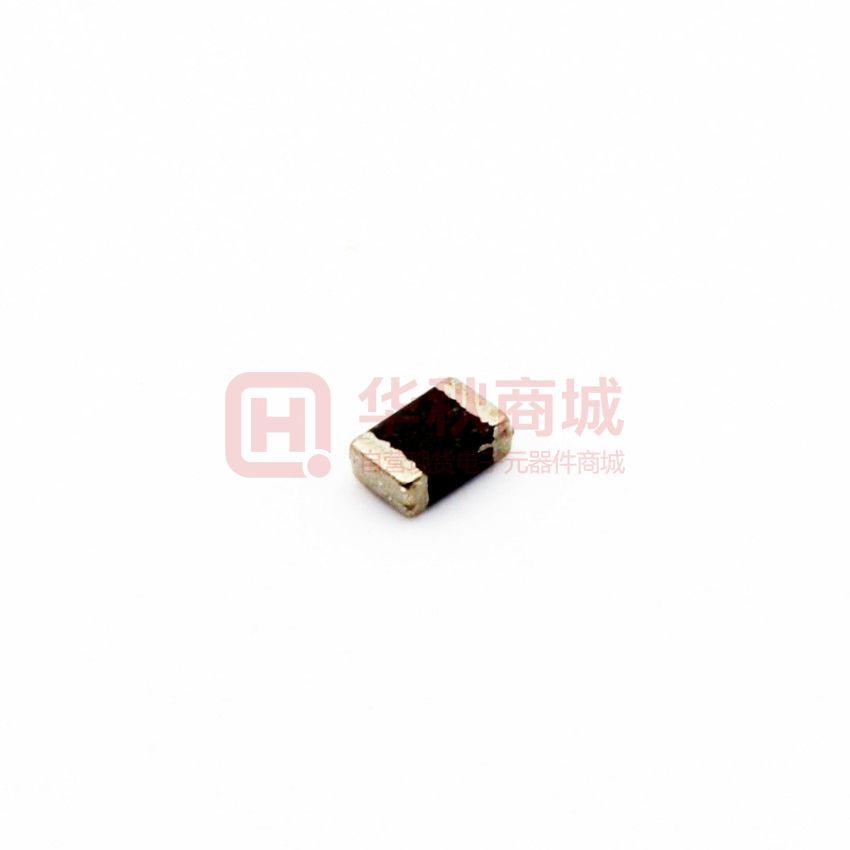

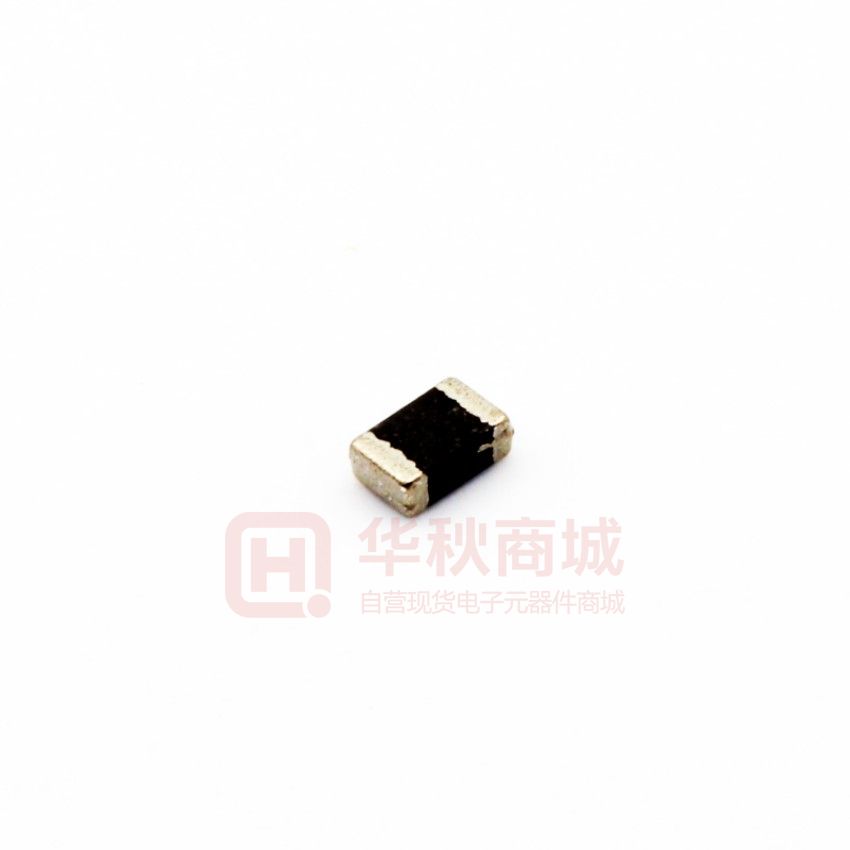

Images are for reference only
PZ3216D501-2R0TF
- Mfr Part #PZ3216D501-2R0TF
- ManufacturerSunlord
- HQ Part #WF0017080
- Package1206
- Lead Time Ship immediately
DescriptionChip Bead 500Ω@100MHz ±25% 70mΩ 2A 1206
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| DC Resistance (DCR) | 70mΩ | |
| Rated Current | 2A | |
| Size | 3.20 x 1.60mm | |
| Package / Case | 1206 | |
| Operating Temperature | -55℃~125℃ | |
| Installation Type | SMT | |
| Lead Quantity | 2Pins | |
| Partlife Cycle | Active | |
| Application Level | Consumer | |
| Country of Origin | China | |
| Original Manufacturer | Shenzhen Sunlord Electronics Co., Ltd. | |
| Brand | Sunlord | |
| Series | PZ | |
| Accuracy | ±25% | |
| Impedance | 500Ω@100MHz | |
| Grade | - | |
| Height | 0.85mm | |
| Application | DVD,LCD Displays | |
| Number Of Channels | 1 |
