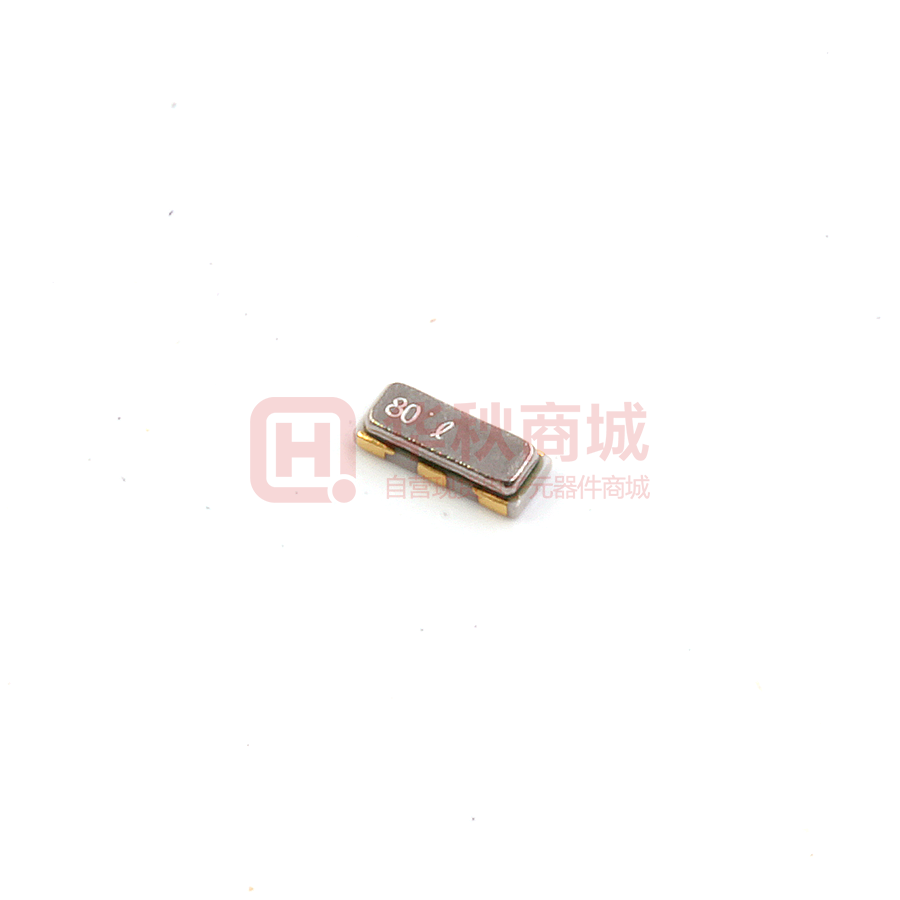

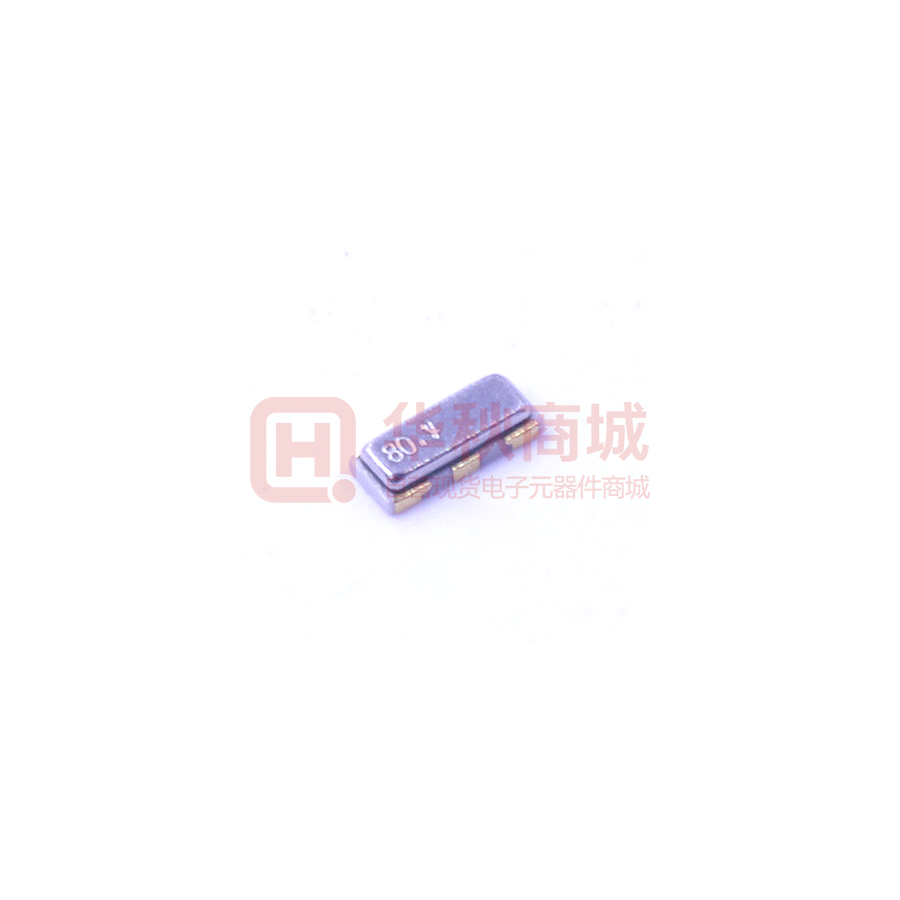

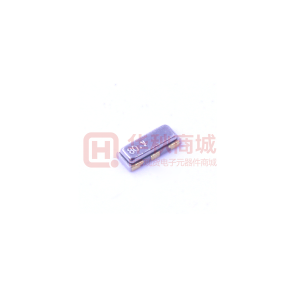

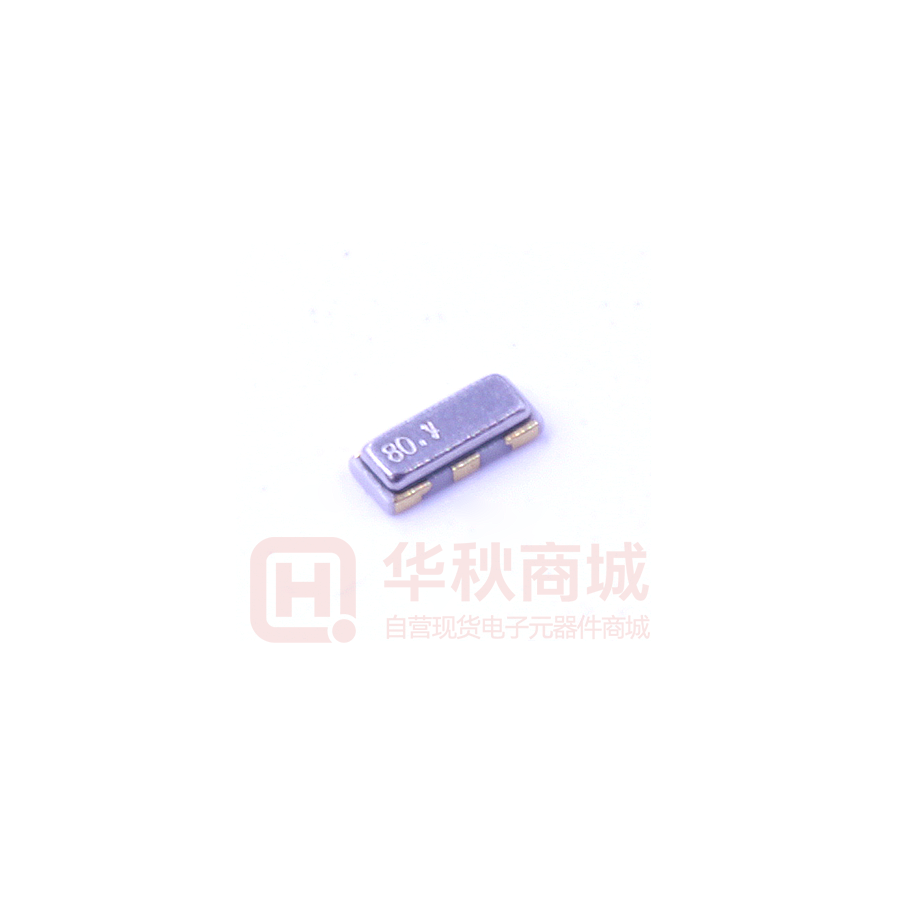

Images are for reference only
CSTNE8M00GH5C000R0
- Mfr Part #CSTNE8M00GH5C000R0
- ManufacturerMurata
- HQ Part #CR0250516
- PackageSMD3213_3P
- Lead Time Ship immediately
DescriptionCeramic Resonators 8MHz ±0.13% ±0.07% SMD3213_3P
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Built In Load Capacitance | 33pF | |
| Annual Aging Rate | ±0.07% | |
| Lead Quantity | 3Pin | |
| Dominant Frequency | 8MHz | |
| Installation Type | SMT | |
| Frequency Error | -0.07~+0.07% | |
| Size | 3.20 x 1.30mm | |
| Package / Case | SMD3213_3P | |
| Operating Temperature | -40~+125℃ | |
| Overtone | Thickness Shear mode | |
| Material | Ceramic | |
| Pb Free | Yes | |
| Application | Consumer, Industrial | |
| Product State | Active | |
| Insulation Resistance | 500MΩ @ DC100V | |
| Packaging Technology | Glue sealing | |
| Cut Type | Thickness Shear mode | |
| Partlife Cycle | Active | |
| Output Wave | Sine Wave | |
| Carries tape Std | 8.0mm | |
| Storage Temperature | -55~+125℃ | |
| Marking Type | Laser | |
| Country of Origin | Japan | |
| Original Manufacturer | Murata Manufacturing Co., Ltd. | |
| Frequency Stability | ±0.13% | |
| Series | CSTNE | |
| Equivalent Series Resistance | 40Ω | |
| Grade | Industrial | |
| Height | 0.80mm |
