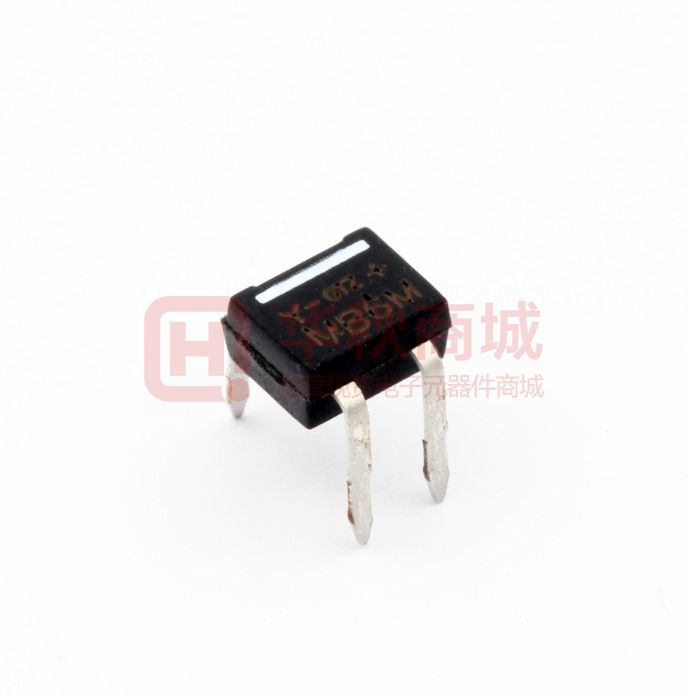

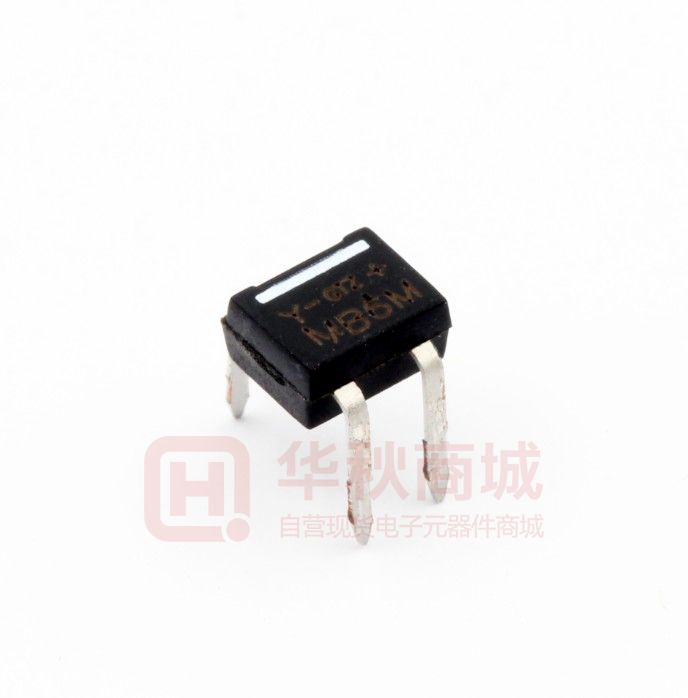

Images are for reference only
UMW MB6M(0.8A)
- Mfr Part #UMW MB6M(0.8A)
- ManufacturerUMW
- HQ Part #DS0140401
- PackageDB-4P_3.875X4.69MM_TM
- Lead Time Ship immediately
Description0.8A Single-Phase Glass Passivated Bridge Rectifiers Rectifier Reverse Voltage 50 to 1000V
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Reverse Peak Voltage (Maximum) | 600V | |
| Operating Temperature | -55℃~150℃ | |
| Reverse Withstand Voltage Vr | 600V | |
| Average Rectified Current | 800mA | |
| Forward Voltage Drop Vf | 1V | |
| Reverse Leakage Current Ir | - | |
| Package / Case | MB-1 | |
| Installation Type | DIP | |
| Forward Voltage VF Max | 1.1V | |
| Ifsm - Peak Forward Surge Current | 30A | |
| Partlife Cycle | Active | |
| Storage Temperature | -55~+150℃ | |
| Lead Quantity | 4pin | |
| Height | 2.70mm | |
| L x W/Size | 4.83 x 4.10mm | |
| Certification | RoHS | |
| Country of Origin | China | |
| Original Manufacturer | Shenzhen UMW Semiconductor Co., Ltd. | |
| Brand | UMW | |
| Part Status | Active | |
| Lead Free Or Not | Yes |
