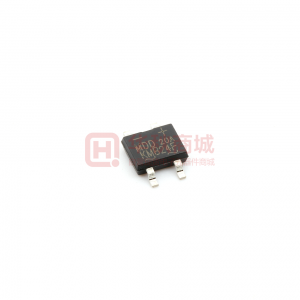

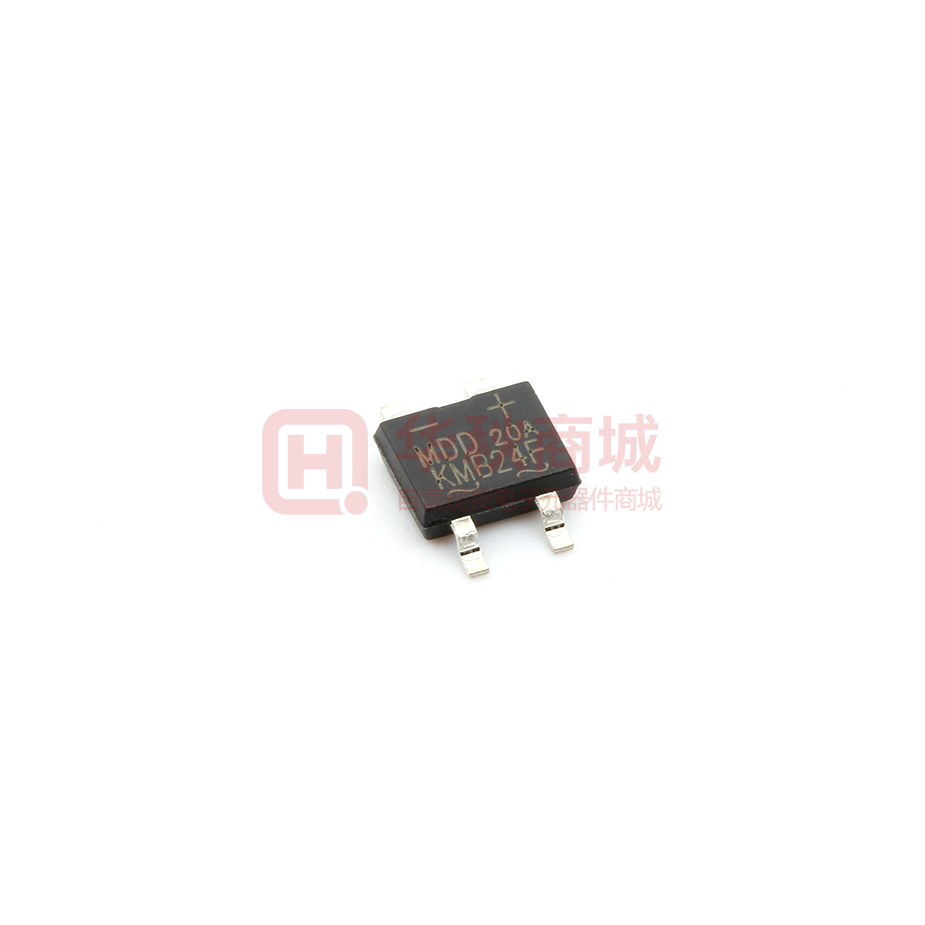

Images are for reference only
KMB24F
- Mfr Part #KMB24F
- ManufacturerMDD
- HQ Part #DS0139436
- PackageDBS-4P_4.725X3.85MM_SM
- Lead Time Ship immediately
DescriptionBridge Rectifiers VRM=40V，IO=2.0A，VF=0.55V，IR=0.5mA
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Reverse Peak Voltage (Maximum) | 40V | |
| Operating Temperature | -55℃~150℃ | |
| Reverse Withstand Voltage Vr | 40V | |
| Average Rectified Current | 2A | |
| Forward Voltage Drop Vf | 550mV | |
| Reverse Leakage Current Ir | 500µA | |
| Package / Case | MBF | |
| Installation Type | SMT | |
| Forward Voltage VF Max | 550mV | |
| Ifsm - Peak Forward Surge Current | 40A | |
| Partlife Cycle | Active | |
| Application Level | Industrial | |
| Storage Temperature | -55~+150℃ | |
| Lead Quantity | 4pin | |
| Height | 1.60mm | |
| L x W/Size | 4.50 x 3.60mm | |
| Printing Code | MDD KMB24F | |
| Country of Origin | China | |
| Original Manufacturer | Microdiode Electronics(Shenzhen)Co.,Ltd. | |
| Brand | MDD | |
| Application | - | |
| Series | KMB | |
| Part Status | Active | |
| Lead Free Or Not | Yes |
