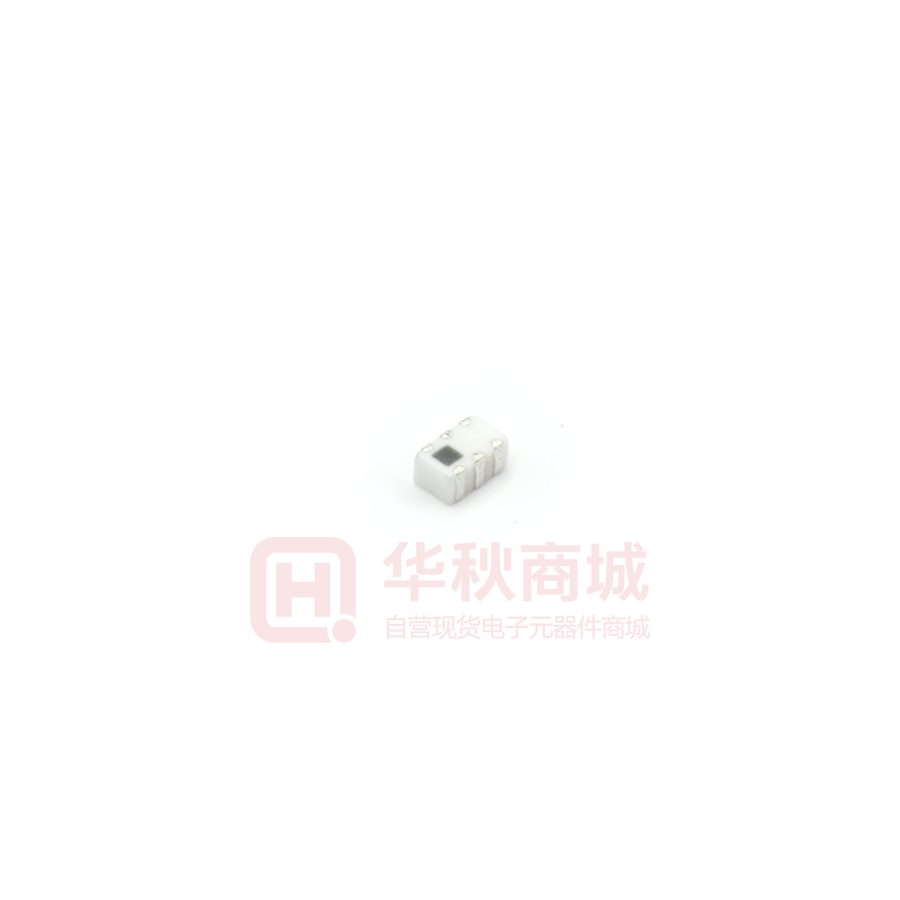

Images are for reference only
HHM1595A1
- Mfr Part #HHM1595A1
- ManufacturerTDK
- HQ Part #RF0029993
- Package0805
- Lead Time Ship immediately
Description2.5dB 8dB 180°@±20° 3GHz~8GHz 1.5dB 50Ω:100Ω -40℃~+85℃ 0805 Balun ROHS
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Package / Case | - | |
| Installation Type | - | |
| Frequency Range | 3GHz~8GHz | |
| Operating Frequency | 3~8GHz | |
| Partlife Cycle | Active | |
| Storage Temperature | -40~+85℃ | |
| Lead Quantity | 6Pins | |
| Country of Origin | Japan | |
| Original Manufacturer | TDK Corporation | |
| Brand | TDK | |
| Size | - | |
| Insertion Loss | 1.5dB | |
| Impedance Ratio - unbalanced/balanced | 50/100Ω | |
| Phase Difference | 180°±20 | |
| Moisture Sensitivity Level (MSL) | - | |
| Lead Free Or Not | Yes | |
| Height | 0.037"（0.95mm） | |
| Return Loss | 8dB | |
| Part Status | Active | |
| Series | HHM |
