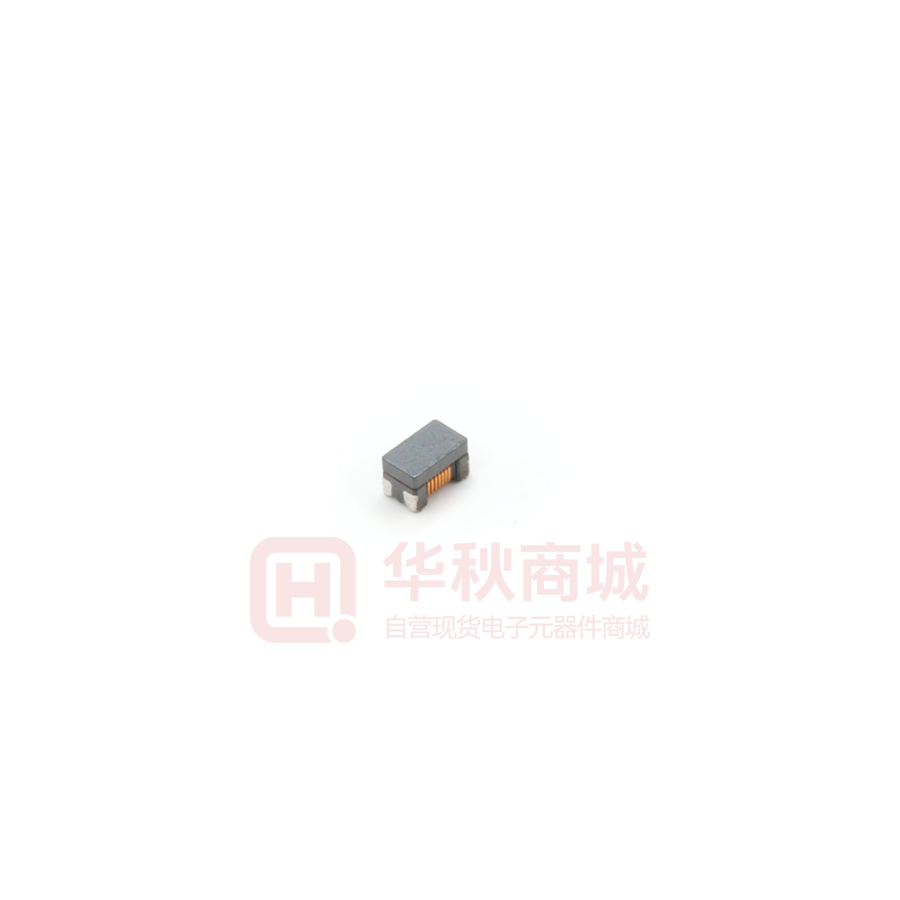

Images are for reference only
ATB2012-75011-T000
- Mfr Part #ATB2012-75011-T000
- ManufacturerTDK
- HQ Part #RF0029753
- Package0805
- Lead Time Ship immediately
Description50MHz~1.2GHz 1.2dB 75Ω:75Ω 20dB 0805 Balun ROHS
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Package / Case | - | |
| Installation Type | - | |
| Frequency Range | 50MHz~1.2GHz | |
| Operating Frequency | 0.05~1.2GHz | |
| Partlife Cycle | Active | |
| Storage Temperature | -40~+85℃ | |
| Lead Quantity | 4Pins | |
| Certification | RoHS | |
| Country of Origin | Japan | |
| Original Manufacturer | TDK Corporation | |
| Brand | TDK | |
| Size | 2.00 x 1.20mm | |
| Insertion Loss | 0.8dB | |
| Impedance Ratio - unbalanced/balanced | 75/75Ω | |
| Phase Difference | - | |
| Moisture Sensitivity Level (MSL) | - | |
| Lead Free Or Not | Yes | |
| Height | 0.047"（1.20mm） | |
| Return Loss | - | |
| Part Status | Active | |
| Series | ATB |
