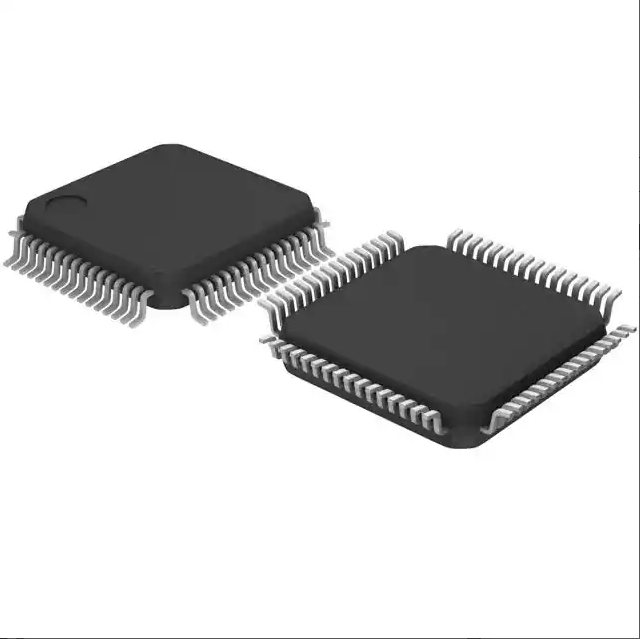

Images are for reference only
AD7656YSTZ-1
- Mfr Part #AD7656YSTZ-1
- ManufacturerADI
- HQ Part #IC0103550
- PackageLQFP64_10X10MM
- Lead Time Ship immediately
DescriptionLQFP-64(10x10) Analog To Digital Converters (ADCs) ROHS
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Number Of Input Ports | 6 | |
| Sampling Rate | 250k | |
| Architecture Technology | SAR | |
| Power Supply Voltage (Digital Terminal) | 5V | |
| Supply Voltage (Analog Terminal) | 5V | |
| Characteristic | - | |
| Package / Case | LQFP64_10X10MM | |
| Installation Type | SMT | |
| Number of Converters | 1 | |
| Interface Type | Parallel,Serial SPI | |
| Partlife Cycle | Active | |
| Storage Temperature | -65~+150℃ | |
| Height | 1.60mm | |
| Certification | RoHS | |
| Country of Origin | America | |
| Original Manufacturer | Analog Devices, Inc. | |
| Brand | ADI | |
| Size | 10.00 x 10.00mm | |
| Resolution (Bit) | 16b | |
| Input Type | - | |
| Power | 140mW | |
| Number Of Channels | 6 | |
| Data Interface | - | |
| Digit | 16bit | |
| Operating Temperature | -40~+125℃ | |
| Supply Voltage | 16.5V | |
| To Configure | S/H-ADC | |
| Part Status | Active | |
| Series | AD7656-1 | |
| Manufacturer'S Standard Lead Time | - | |
| Moisture Sensitivity Level (MSL) | - | |
| Lead Free Or Not | Yes |
