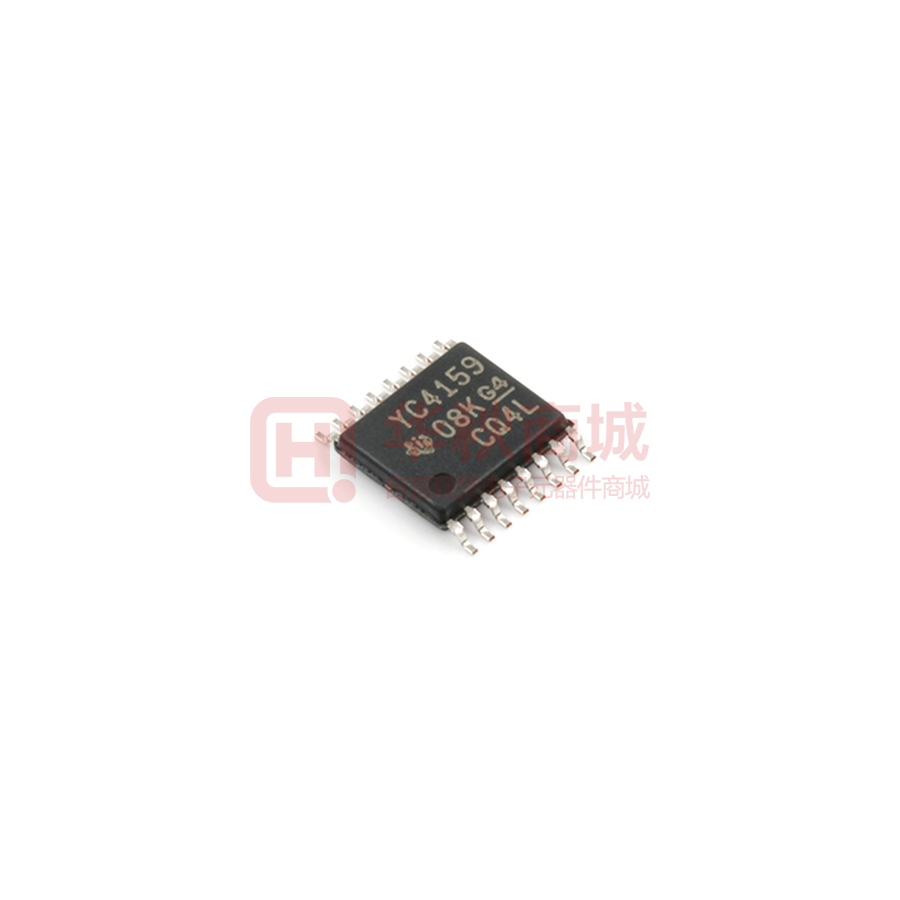

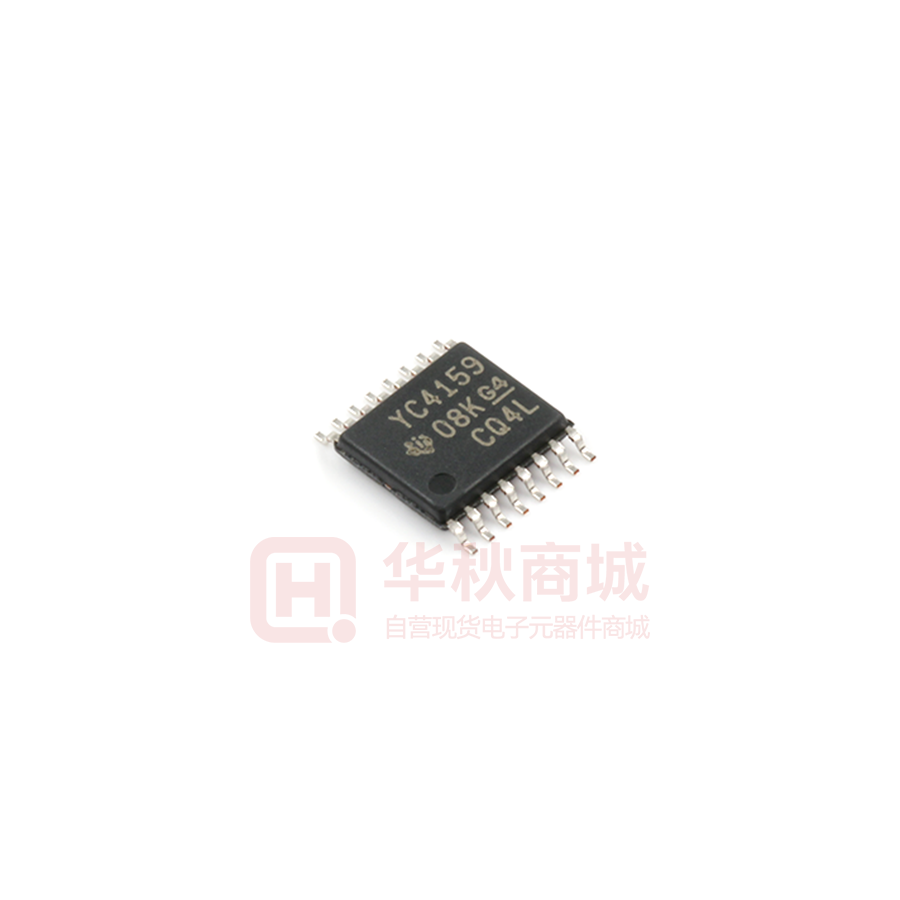

Images are for reference only
TS3A44159PWR
- Mfr Part #TS3A44159PWR
- ManufacturerTI
- HQ Part #IC0086371
- PackageTSSOP16_5X4.4MM_SM
- Lead Time Ship immediately
DescriptionTSSOP-16 Analog Switches / Multiplexers ROHS
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Channel To Channel Matching（ Δ Ron） | 50mΩ | |
| Number Of Circuits | 4 | |
| Moisture Sensitivity Level (MSL) | - | |
| Multiplexer/Demultiplexer Circuit | 2:1 | |
| Supply Voltage, Single (V+) | 1.65V~4.3V | |
| Supply Voltage, Dual (V ±) | - | |
| -3db Bandwidth | 35MHz | |
| Package / Case | TSSOP16_5X4.4MM_SM | |
| On Resistance | 450mΩ | |
| On Resistance | 450mΩ | |
| Leakage Current | 20nA | |
| Lead Quantity | 16Pins | |
| Height | 1.20mm | |
| L x W/Size | 5.00 x 4.40mm | |
| Mounting Type | SMT | |
| Original Manufacturer | Texas Instruments Incorporated | |
| Crosstalk | -73dB@100kHz | |
| Channel Capacitance (Cs (Off), Cd (Off)) | 50pF | |
| Switching Time (Ton, Tof) (Maximum) | 23,32ns | |
| Series | - | |
| Part Status | Active | |
| Switch Circuit | SPDT | |
| Number Of Channels | 4 | |
| Operating Temperature | -40°C~85°C（TA） | |
| Lead Free Or Not | Yes |
