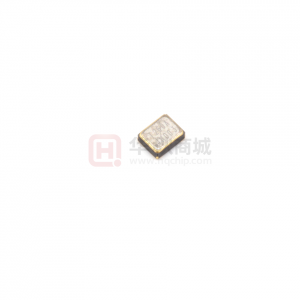

Images are for reference only
TC20A026000GECN003
- Mfr Part #TC20A026000GECN003
- ManufacturerTKD
- HQ Part #CR0252421
- PackageSMD2016_4P
- Lead Time Ship immediately
DescriptionActive Crystal Oscillators 26MHz 1.8V ±2ppm SMD2016_4P
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Annual Aging Rate | ±1ppm/year | |
| Lead Quantity | 4Pin | |
| Dominant Frequency | 26MHz | |
| Installation Type | SMT | |
| Frequency Error | ±2.0ppm | |
| Type | TCXO | |
| Size | 2.05 x 1.65mm | |
| Package / Case | SMD2016_4P | |
| Operating Temperature | -40~+85℃ | |
| Supply Voltage | 1.8V | |
| Current Consumption | 2mA | |
| Material | Quartz Crystal | |
| Pb Free | Yes | |
| Packaging Technology | Seam Sealing | |
| Start up Time | 2ms | |
| Duty Cycle | 40/60% | |
| Partlife Cycle | Active | |
| Output Load | 10pF | |
| Output Wave | Clipped Sine Wave | |
| Storage Temperature | -40~+85℃ | |
| Country of Origin | China | |
| Original Manufacturer | TKD Science and Technology Co., Ltd. | |
| Grade | Industrial | |
| Height | 0.73mm |
