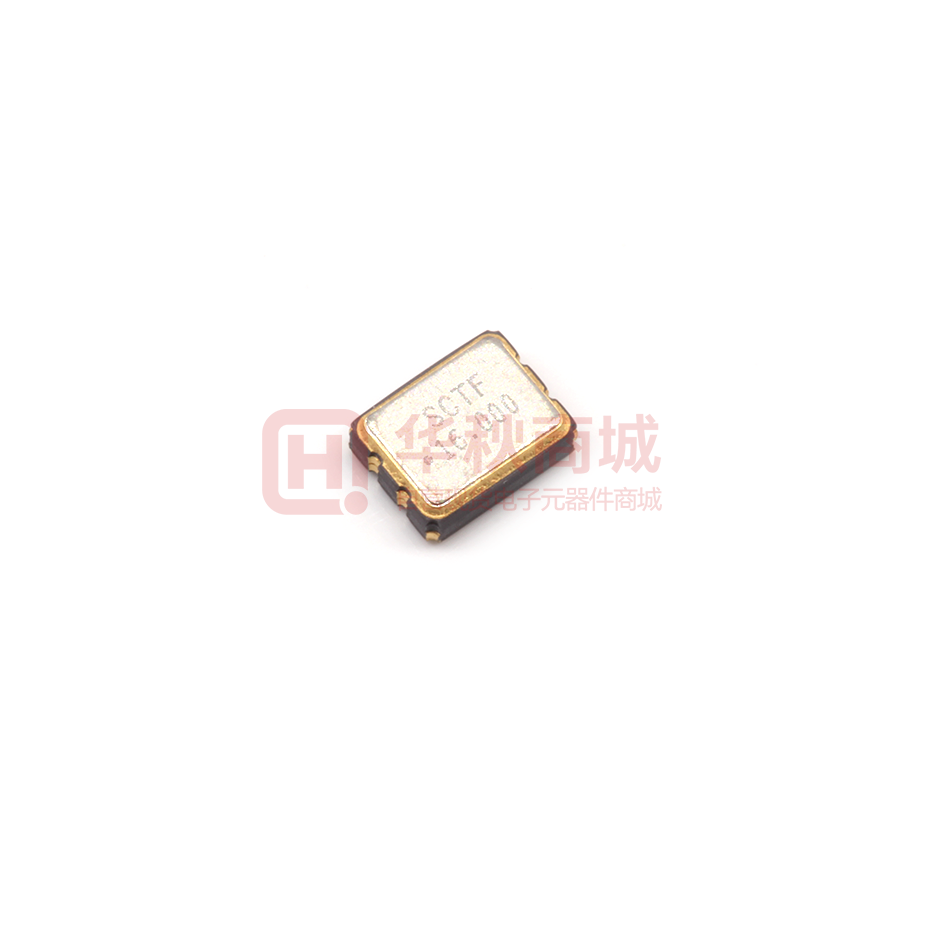

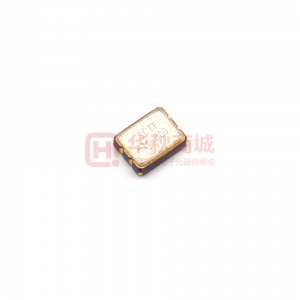

Images are for reference only
S3D16.000000B20F30T
- Mfr Part #S3D16.000000B20F30T
- ManufacturerSCTF
- HQ Part #CR0250956
- Package-
- Lead TimeShip in 4-7WD
DescriptionActive Crystal Oscillators 16MHz 3.3V ±20ppm SMD3225_4P
- Customer #
- Datasheet Datasheet
Product Attributes
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Annual Aging Rate | ±3ppm/year | |
| Lead Quantity | 4Pin | |
| Dominant Frequency | 16MHz | |
| Installation Type | SMT | |
| Frequency Error | ±20ppm | |
| Type | SPXO | |
| Size | 3.20 x 2.50mm | |
| Package / Case | SMD3225_4P | |
| Operating Temperature | -40~+85℃ | |
| Supply Voltage | 3.3V | |
| Output type | CMOS | |
| Current Consumption | 25mA | |
| Material | Quartz Crystal | |
| Pb Free | Yes | |
| Product State | Active | |
| Packaging Technology | Seam Sealing | |
| Partlife Cycle | Active | |
| Control Function | Standby | |
| Output Wave | Square Wave | |
| Carries tape Std | 8.0mm | |
| Storage Temperature | -55~+125℃ | |
| Marking Type | Laser | |
| Country of Origin | China | |
| Original Manufacturer | Shenzhen SCTF Electronics Co., Ltd | |
| Frequency Stability | ±30ppm | |
| Height | 1.00mm |
