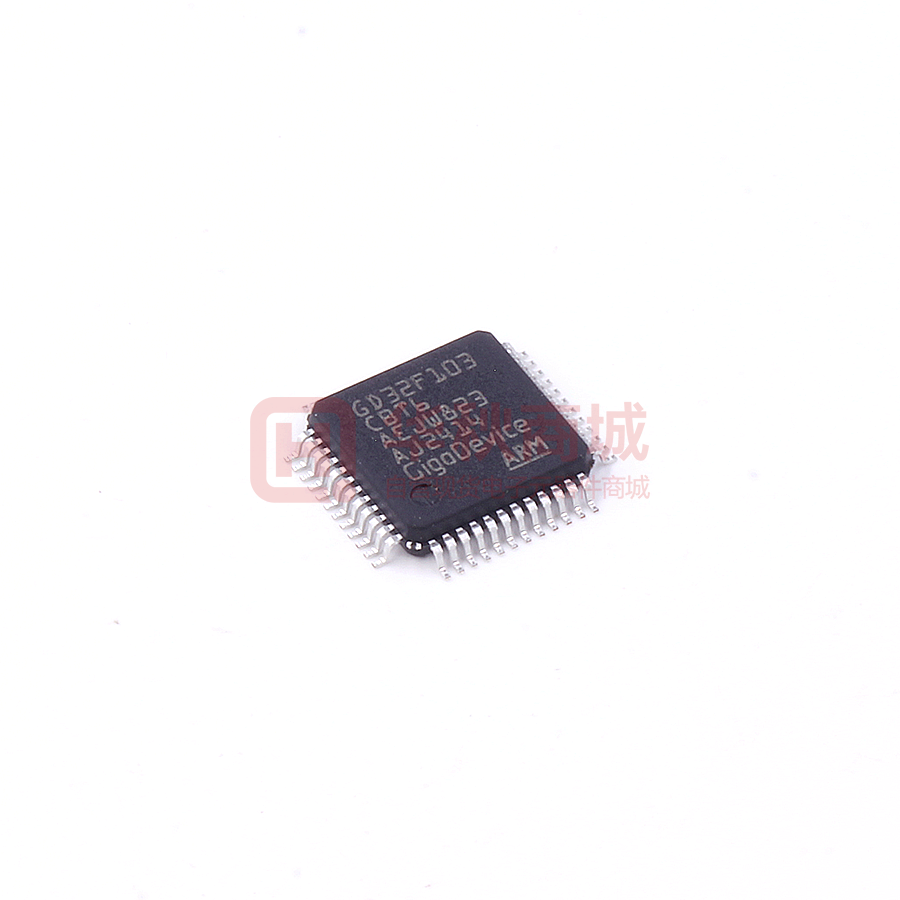

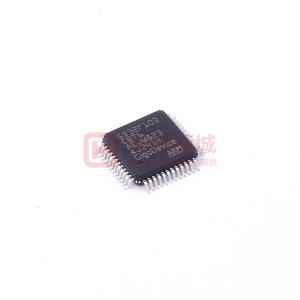

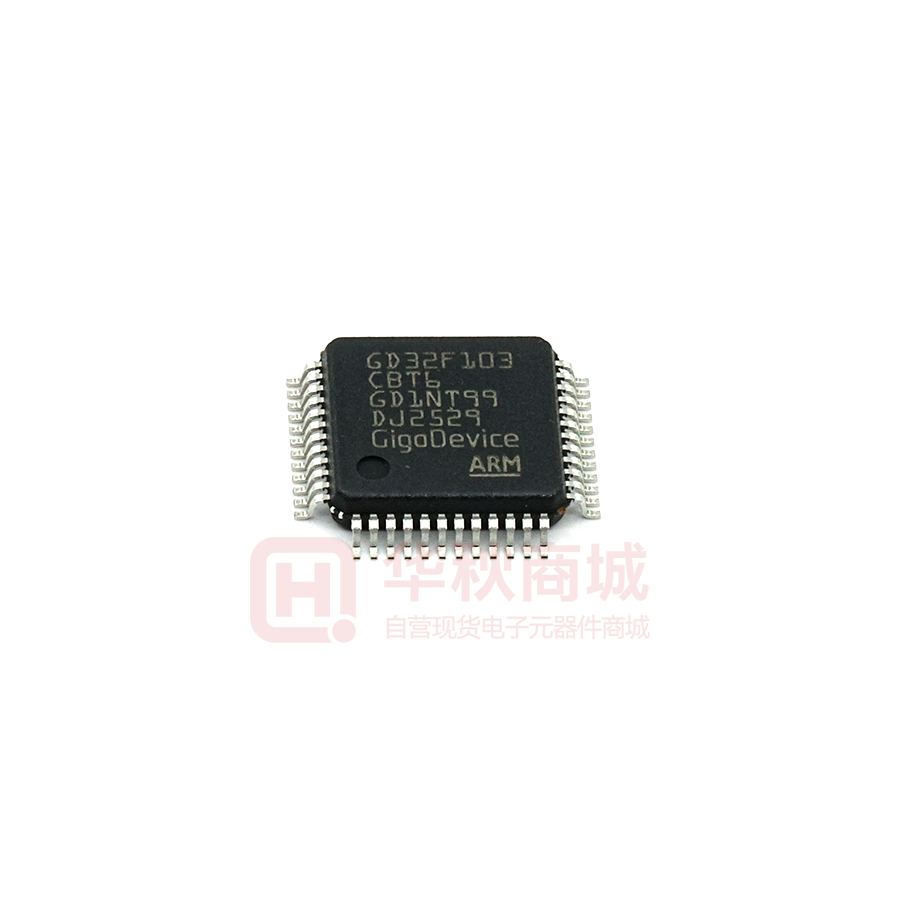

Images are for reference only
GD32F103CBT6
- Mfr Part #GD32F103CBT6
- ManufacturerGigadevice
- HQ Part #UN0004805
- PackageLQFP48_7X7MM
- Lead Time Ship immediately
Description32-bit MCU Microcontrollers 2.6V~3.6V LQFP48_7X7MM CPU core: ARM Cortex-M3 Maximum CPU frequency: 108MHz Program storage capacity: 128KB Program memory type: FLASH RAM Total capacity: 20KB Number of GPIO ports: 37
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Memory Ram Capacity | 20KB | |
| Operating Voltage (Range) | 2.6V~3.6V | |
| Program Space Type | FLASH | |
| Program Space Capacity | 128KB | |
| Total Number Of I/O Ports | 37 | |
| Primary Frequency Speed (Max) | 108MHz | |
| CPU Core | ARM Cortex-M3 | |
| Interface | USART,I2C,SPI,CAN,USBD | |
| Package / Case | LQFP48_7X7MM | |
| Installation Type | - | |
| Maximum Clock Frequency | 25MHz | |
| Picth | 0.50mm | |
| Partlife Cycle | Active | |
| Height | 1.20mm | |
| Country of Origin | China | |
| Original Manufacturer | GigaDevice Semiconductor (Beijing) Inc. | |
| Brand | GigaDevice | |
| Storage Temperature | -55~+150℃ | |
| Size | 7.00 x 7.00mm | |
| Part Status | Active | |
| Operating Temperature | -40°C~85°C | |
| Series | GD32F103xx |
